BRUTEFORCE - XX1 Functional Trainer

Product Name : BRUTEFORCE - XX1 Functional Trainer
Brand : BRUTE FORCE
Stock Availability :Yes
Built TOUGH for the serious trainer. The XX1-CUT is here to get you quicker results!

SKU: meta title
Tag:meta title

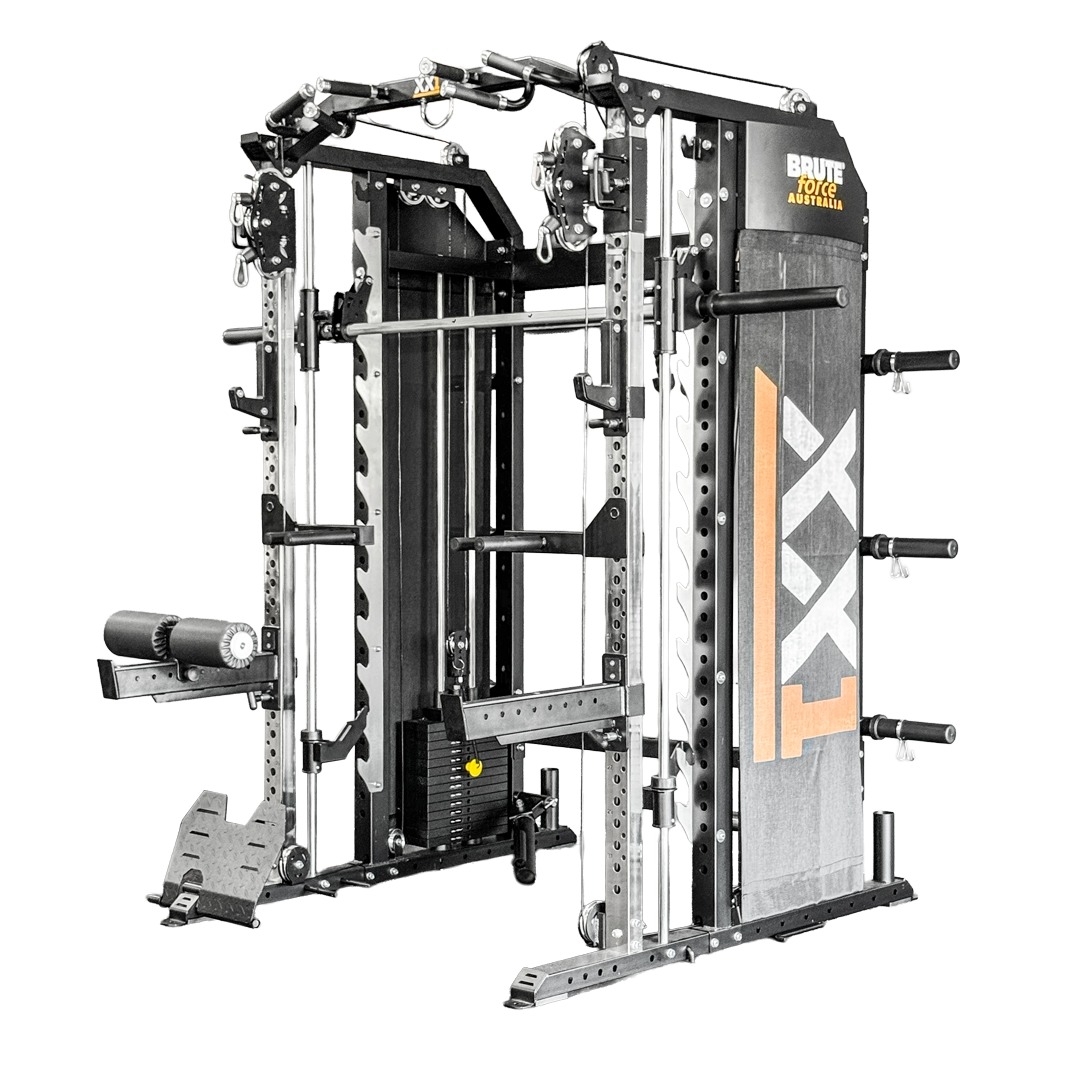

The XX1-CUT Functional Trainer
Built TOUGH for the serious trainer. The XX1-CUT comes with 18 quality attachments and accessories. In addition to that XX1-CUT has two add-on Extra packs which elevate it to even greater heights as well as the optional add on of the Adjustable Jammer Arms. These Extra Packs can be purchased at check out or at a future date.There is another pack ‘Elevator’ which offers the option to increase the height of the unit by 120mm for those extra tall users. Justin our male model in the video is 6’3” (190.5cm) he was demonstrating on the model without the ‘Elevator’ pack.

The BUILD.
Main frame is constructed from high-quality steel tube 70mm x 70mm, and 70mm x 50mm with the chrome pulley upright posts being 70mm x 50mm and 2mm gauge. Strong welds and rust resistant commercial powder coating is used throughout.

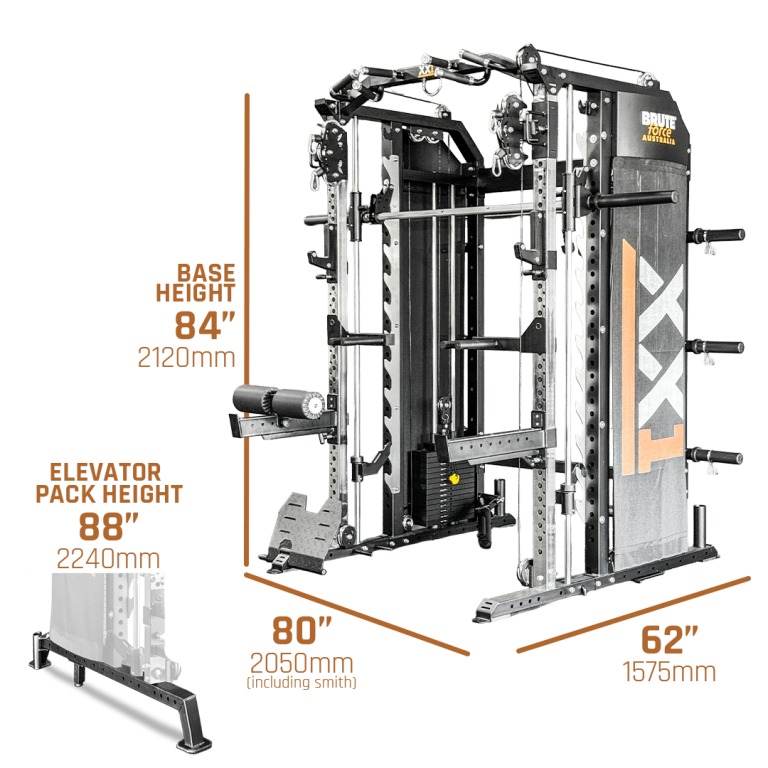

Dimensions

  • Exterior Dimension
    • Height 2120mm/84”
    • Width 2050mm/80”
    • Depth 1575mm/62”
  • Other Dimensions
    • 1100mm/ 43.3” between uprights.
    • 1240mm/ 48.8” Width (not including smith)

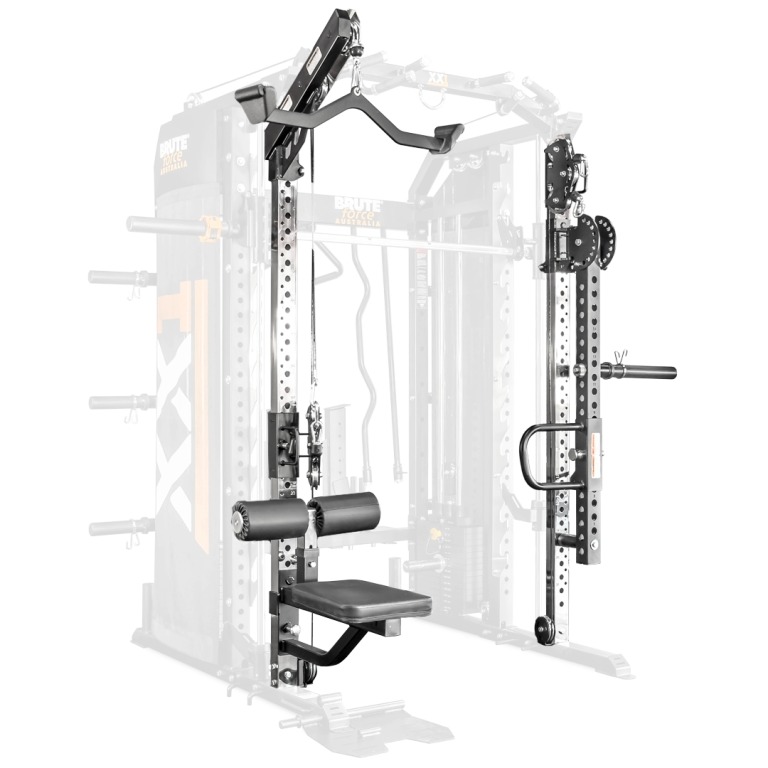

The Half Rack

  • 34 Attachment points
  • Uprights 70x50mm
  • Half Rack Holes 20mm
  • 14 Gauge Steel
  • Max weight rating – 450kg/990Lbs Static Weight
  • Steel multi grip chin up 200kg/440Lbs Static Weight Maximum
  • Attachments included for half rack: Dipping Handles, Lat Seat, Lat Pulldown Extender, Adjustable Jammers arms, Mono Lifts , J Hooks & Spotter Arms

Please note: Not all attachments shown are included with XX1-CUT.

Pulleys & Stacks

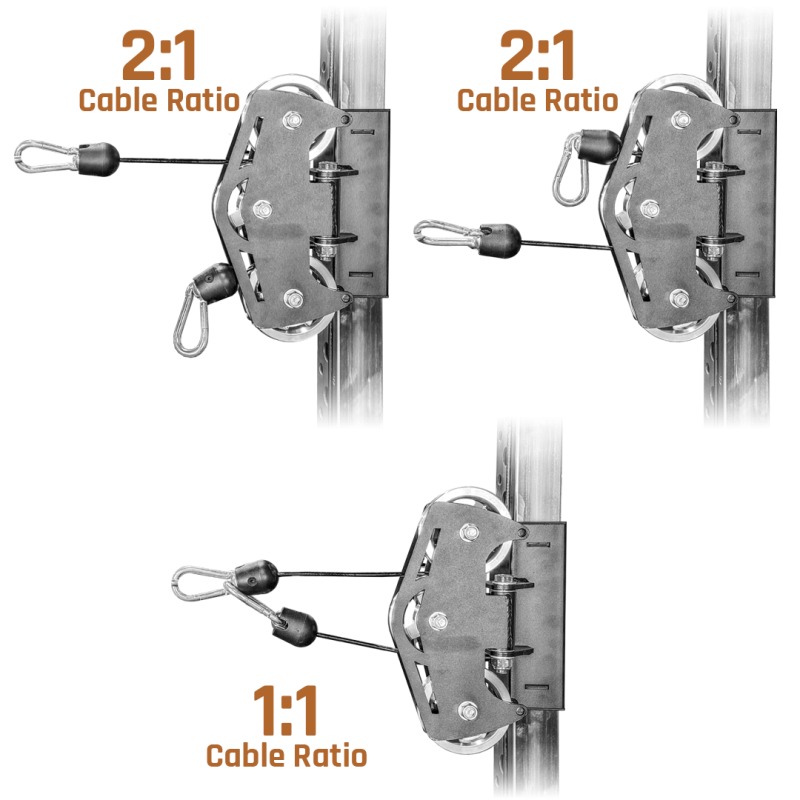

PULLEYS Featuring the 2:1 and 1:1 aluminium pulley system on the front power rack, form an essential component of this machine. A fixing point for the many attachments included with the XX1-CUT, this is the ultimate cable system.

  • 31 different height adjustments
  • 2:1 cable ratio allowing for 6.6lbs(3kg) weight jumps and extended cable travel
  • 1:1 cable ratio allowing for 13.2lbs(6kg) weight jumps for rows and pull downs
  • 2000lb Rated commercial cables
  • Sealed Bearing free running quality Aluminium pulleys
  • Cable Cross over distance 800mm /31.4”
  • Cable Travel 2:1 – 2150mm
  • Cable Travel 1:1 – 1125mm

THE WEIGHT STACKS

  • Twin 90kg (198lb) precision cut steel weight stacks
  • 15 weight increments. 6.6Lb Increments per weight plate (on a 2:1, 13Lb on a 1:1)
  • Easy to access pin selected weight stacks for quick changing super sets
  • Magnetic plate horn included to add an extra 60kg/132Lbs of Olympic Plates to one or both weight stacks.

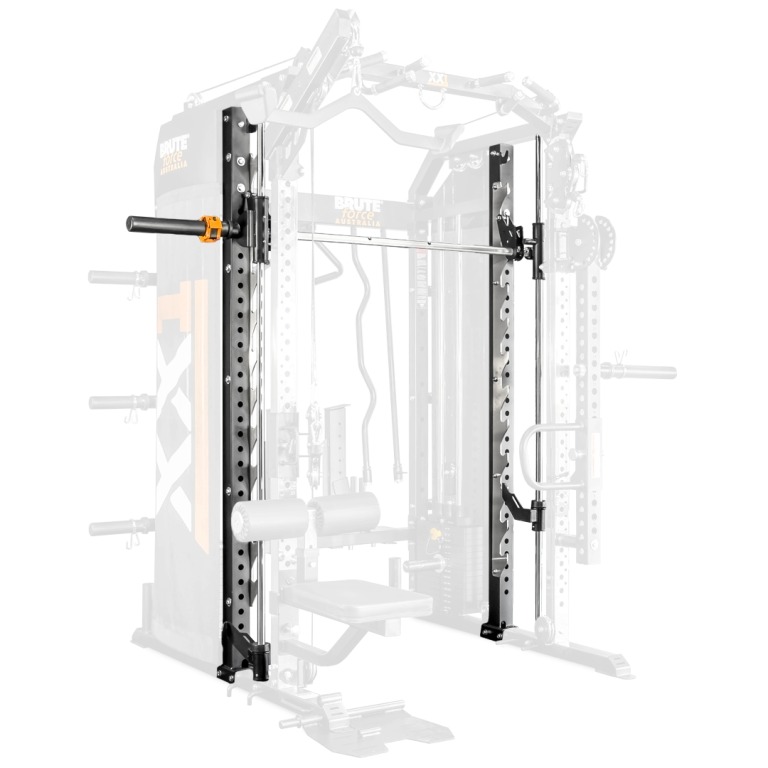

The Smith

The Smith Bar

  • Safety Spotters for added protection.
  • 13 steel racking points with gun rack
  • Smith bar weight 18.5kg/41Lbs
  • Smith bar diameter 30mm
  • Smith bar loadable sleeve space 33cm
  • Smith bar max height 1765mm/69.5” – Smith bar Max rack 1900mm/74.8”
  • 25mm Self-aligning linear bearings
  • Smith bar rated to 500kg/1100Lbs

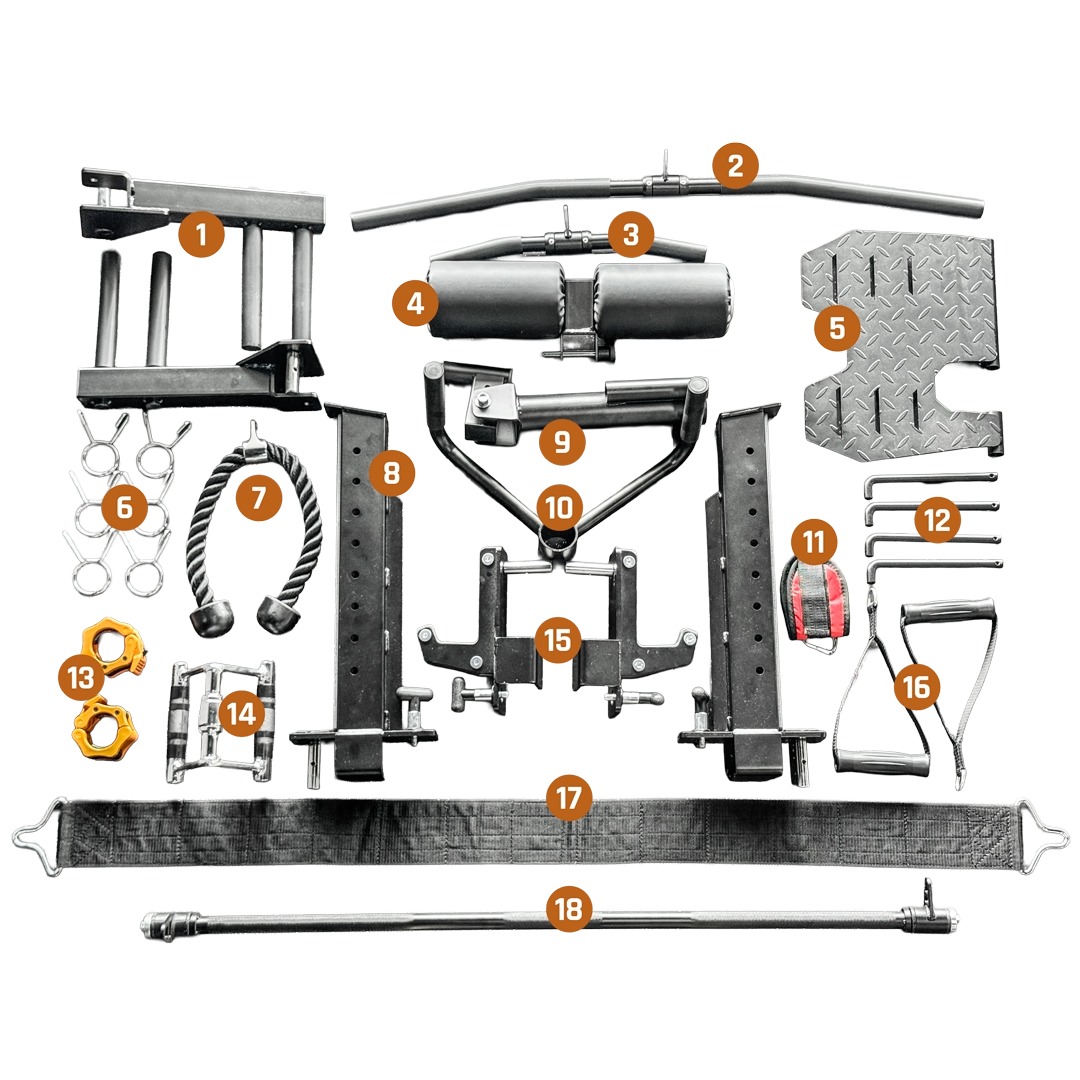

                                            The Attachments
1. Dipping Handles
2. Lat Bar
3. Bicep Tricep Bar
4. Lat Pull Down Lock In
5. Seated Row Plate
6. 6x Spring Collars
7. Tricep Rope
8. Spotter Arms
9. Landmine (Coretrainer)
10. Bentover Row Handle
11. Ankle Cuff
12. 4x Band Pegs
13. 2x Lock Collars
14. Close Grip Row Handle
15. J-Hooks
16. D-Handles
17. Assisted Dipping Belt
18. Straight Connector Bar

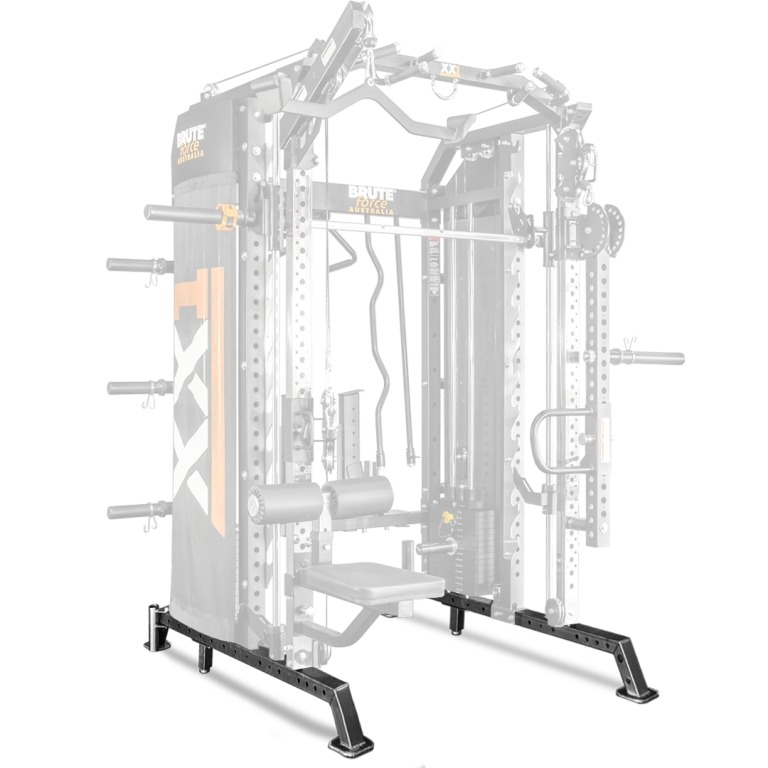

The Elevator (Optional extra)

Needing more height for your XX1-CUT unit? The Elevator pack is the perfect solution. Increasing the height of the XX1-CUT by 120mm or 4.7"

Additional information

Weight 222
Dimensions 222
