BRUTEFORCE EDGE Functional Trainer

Product Name : BRUTEFORCE EDGE Functional Trainer
Brand : BRUTE FORCE
Stock Availability :Yes
EDGE Functional Trainer
Introducing the EDGE. The ultimate cable corner rack for your home gym. With our 7 point adjustable Pivot arms as well as our 12 Gauge uprights for lat pulldowns, dipping handles, pull ups and seated rows, the EDGE truly sits one above in cable units.

SKU:
Tag:

The EDGE Functional Trainer is the ultimate cable corner rack for your home gym, combining versatility and durability for a complete workout experience. Featuring 7-point adjustable pivot arms, 12-gauge uprights, and multiple attachments for lat pulldowns, dips, pull-ups, and seated rows, it stands out as a premium all-in-one cable unit.

EDGE Functional Trainer

Introducing the EDGE. The ultimate cable corner rack for your home gym. With our 7 point adjustable Pivot arms as well as our 12 Gauge uprights for lat pulldowns, dipping handles, pull ups and seated rows, the EDGE truly sits one above in cable units.



CABLE SYSTEM

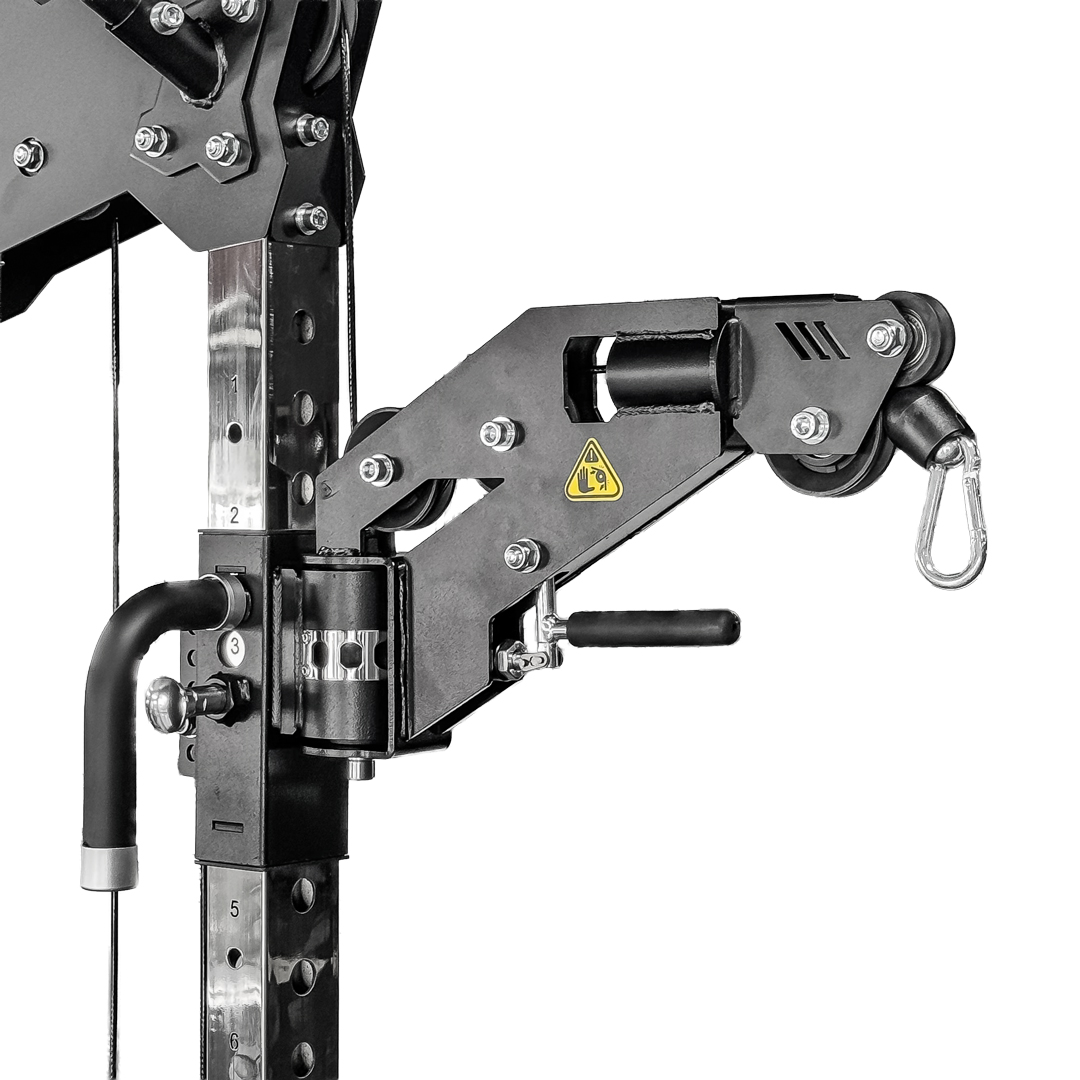

Pivoting arms & Pulleys Featuring the 2:1 nylon pulley system our premium bearings insure that smooth cable feel. These cables with range provide the ultimate cable system.

    • 21 different height adjustments
    • Pivot arms consisting of 8-12 gauge steel
    • Pivot arms extends overhead for lat pull downs
    • 2:1 cable ratio allowing for 5.5lbs(2.5kg) weight jumps and extended cable travel
    • 2000lb Rated commercial cables
    • Sealed Bearing free running quality Nylon pulleys
    • Full width span of pivot arms 82.7"

STACKS & UPRIGHTS

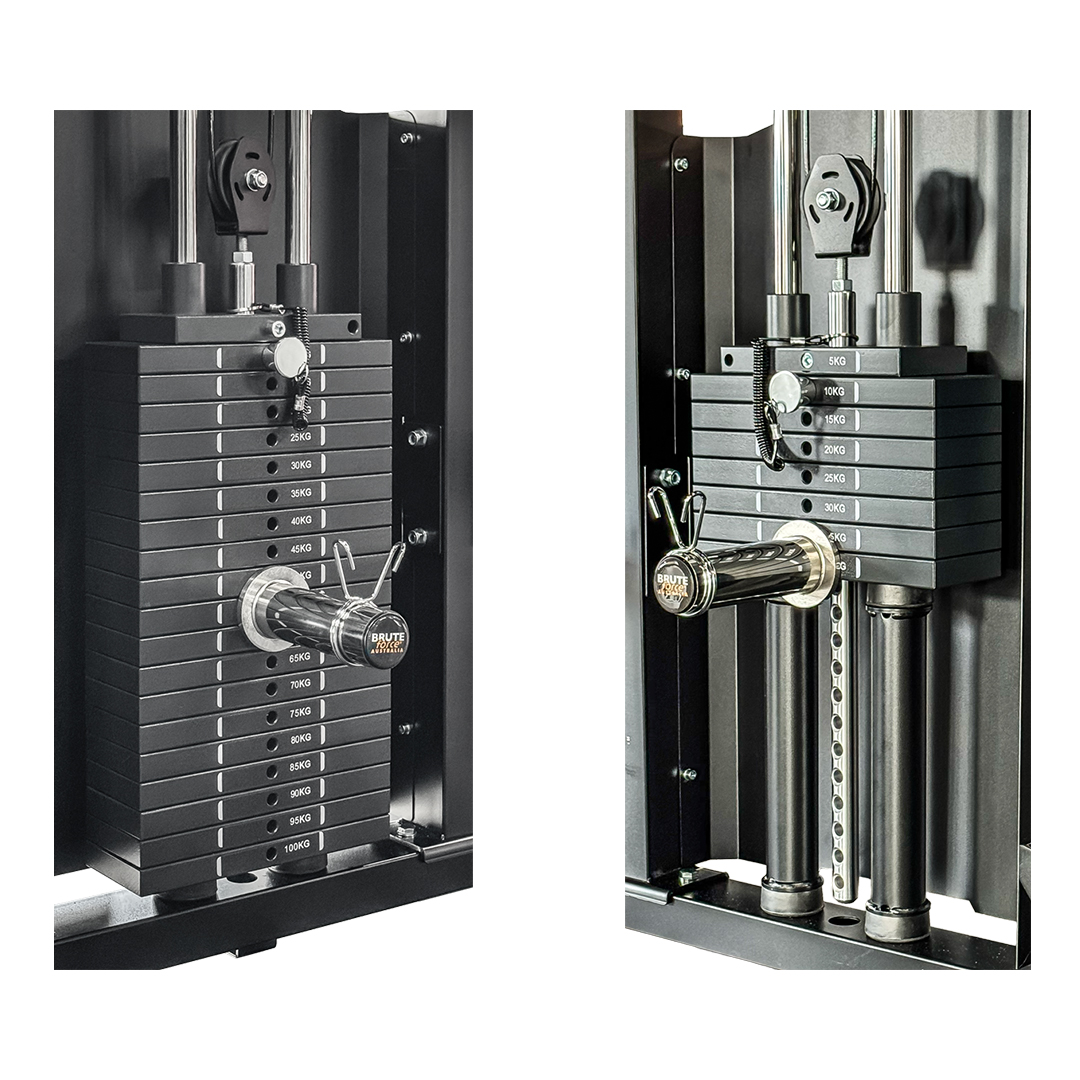

THE WEIGHT STACKS
1 x 100kg stack and 1 x 40kg stack. You pick which side each stack goes. Make the 100kg side your primary for heavy movements such as lat pull downs and seated rows (achieve up to 220kg for this stack with the magnetic plate horns). The second stack 40kg weight comes into play with cable cross over and rear delt cable exercises, more than enough weight for both. Need more? Use the magnetic plate horn include to load a further 60kg of Olympic Plates.
Precision cut steel weight stacks
5kg/11lb Increments per weight plate (Halve with 2:1 cable ratio)
Easy to access pin selected weight stacks for quick changing super sets
THE UPRIGHTS
12 Gauge Steel
Supports Lat Pull Down Seat
Supports Seated Row Plate
Supports Dipping Bars
Lifetime Structural Frame Warranty

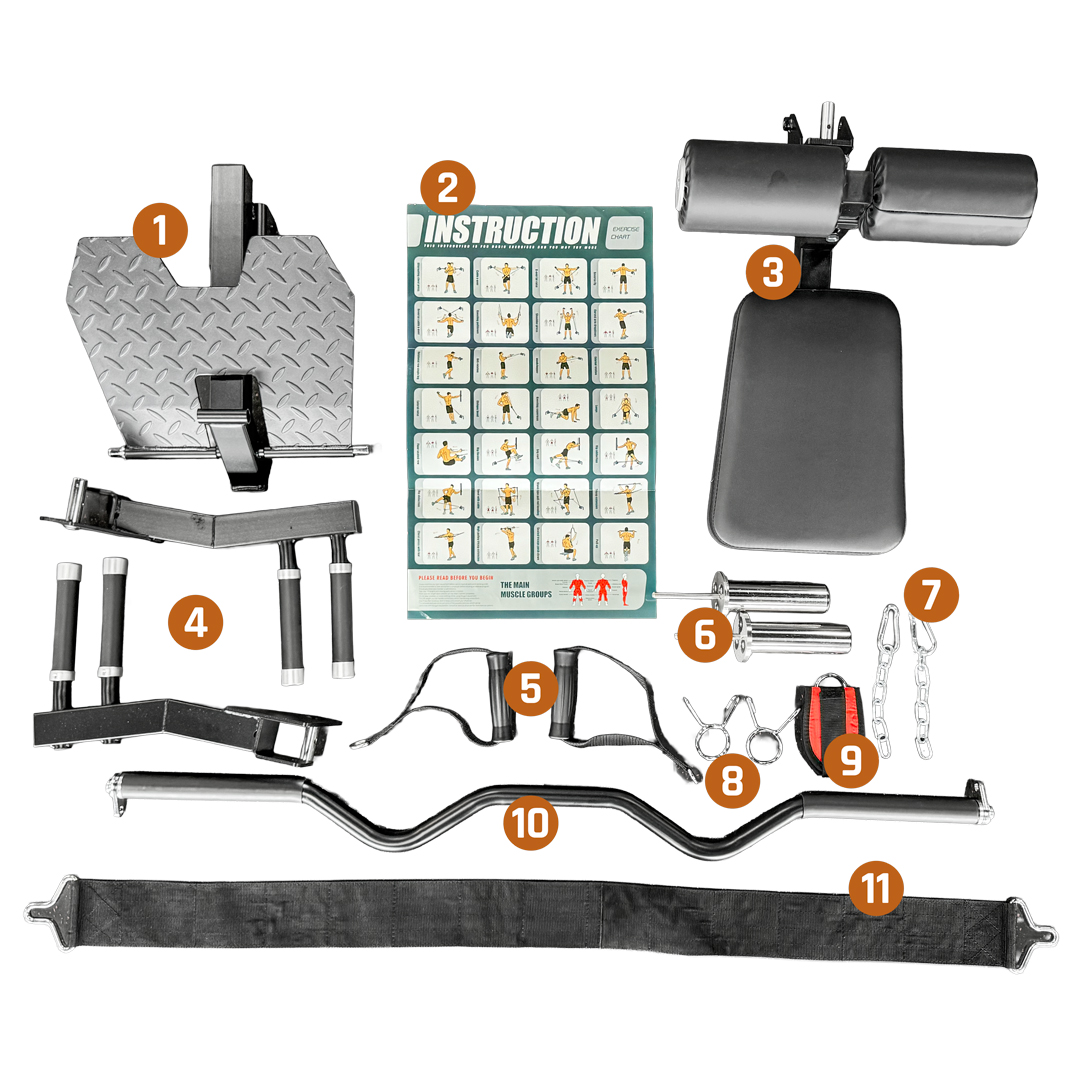

INCLUDED ACCESSORIES

  1. Seated Row Plate
  2. Cable Exercise Poster
  3. Lat Pull Down Seat
  4. Dipping Handles
  5. D- Handles
  6. 2x Magnetic Weight Pins
  7. 2x Chain Links
  8. 2x Spring Collars
  9. Ankle Cuff
  10. Wave Connector Bar
  11. Assisted Pull Up Belt

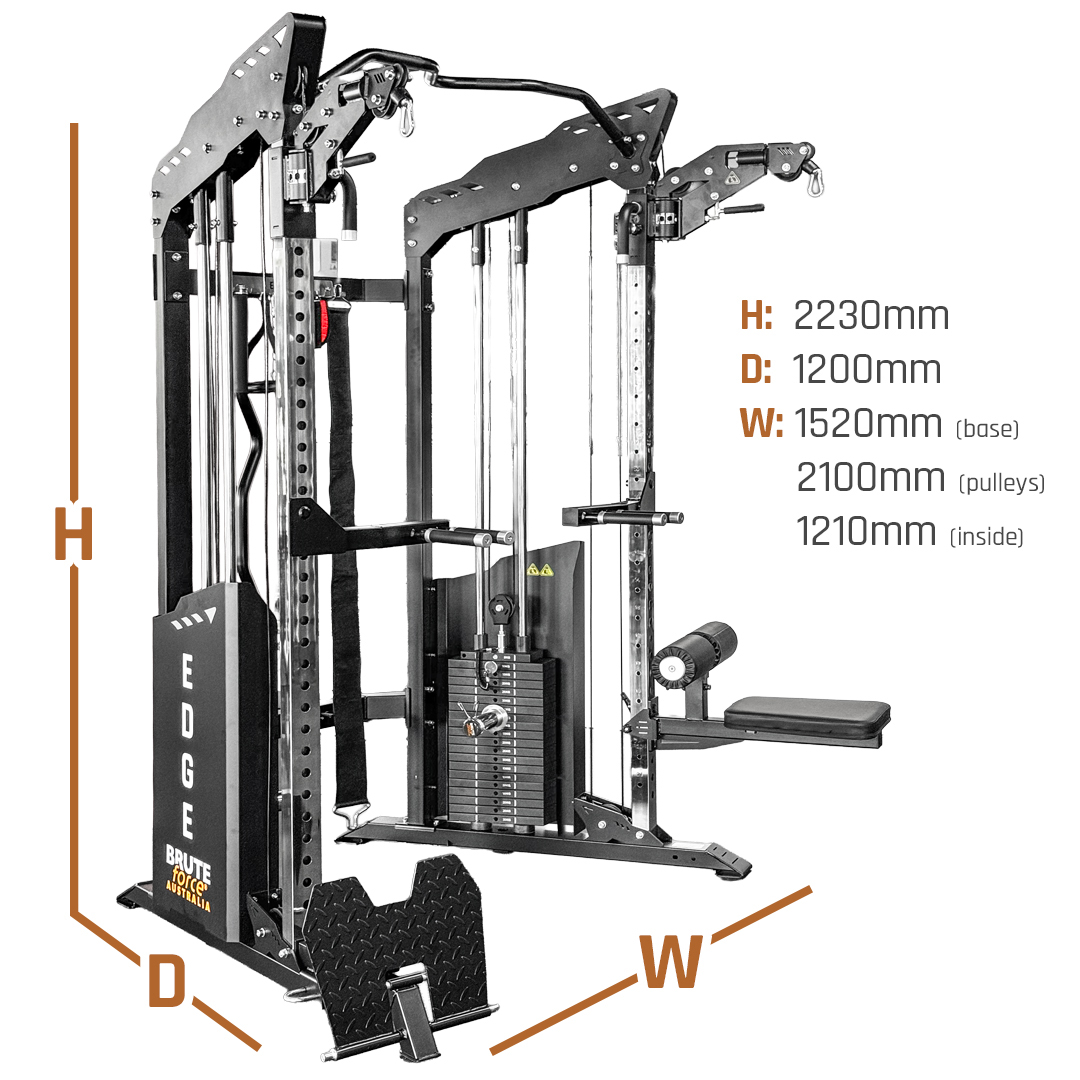

DIMENSIONS

  • Exterior Dimension
    • Height 2230mm/87.8”
    • Width 1960mm/59.85”.
    • Depth 1510mm/47.3”
  • Interior dimensions
    • 1210mm/ 47.7” between uprights.
    • 2060mm/ 81” floor to chin up bar
    • 2100mm/82.7” Max Pivot Arm end to end
  • Attachment Storage
    • The EDGE has a Storage rack on the back frame for accessories
